C20 230V White with Frontal+Vertical Brackets and Security Clip

SKU: 3A3#000004309

In stock, 89 left
Quantities more than the above will take approx 20 working days.

RRP: $322.00
x

Including GST

In stock, 89 left

FIND OUT ABOUT OUR RETURNS POLICY

DESCRIPTION

C20 230V White with Frontal+Vertical Brackets and Security Clip

- Chain actuator
- Thrust force 300 N
- Max stroke 360 mm

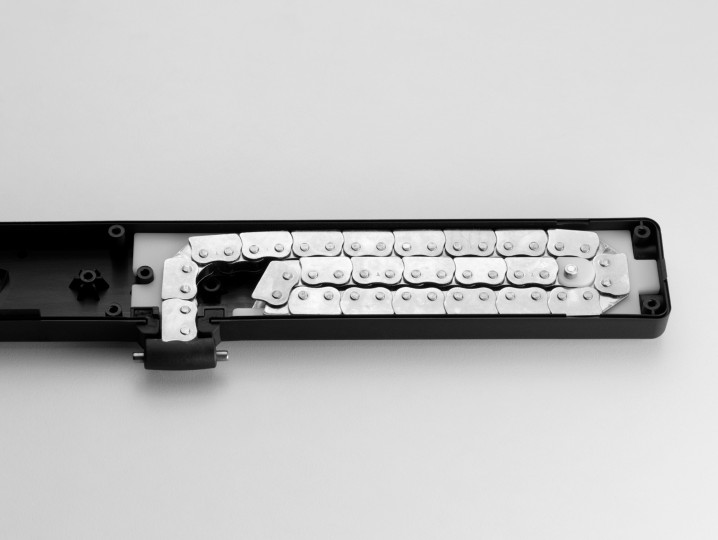

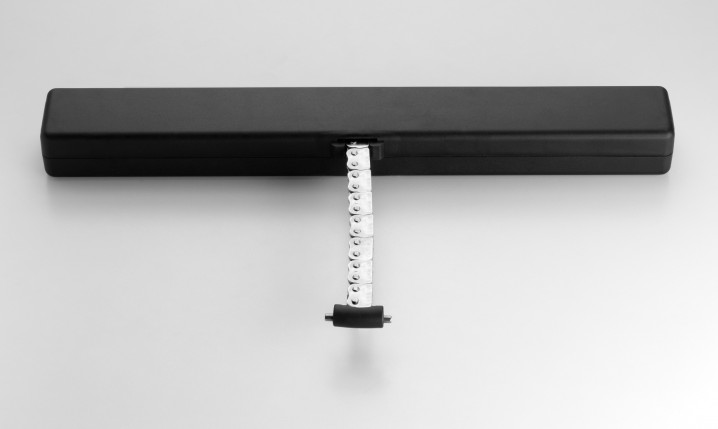

Electric C20 actuator with double link articulated chain, enclosed in a suitable casing, with different mounting accessories for top and bottom hung windows. Operation at 230V 50Hz or, as an alternative, at 24V DC. Maximum applicable load 300N. Fast hooking and unhooking system of the chain to the window. Adjustment of the force and of the stroke at 240 or 360mm by external knobs. Electronic end of stroke in closing by current absorption control. CE marked device.
